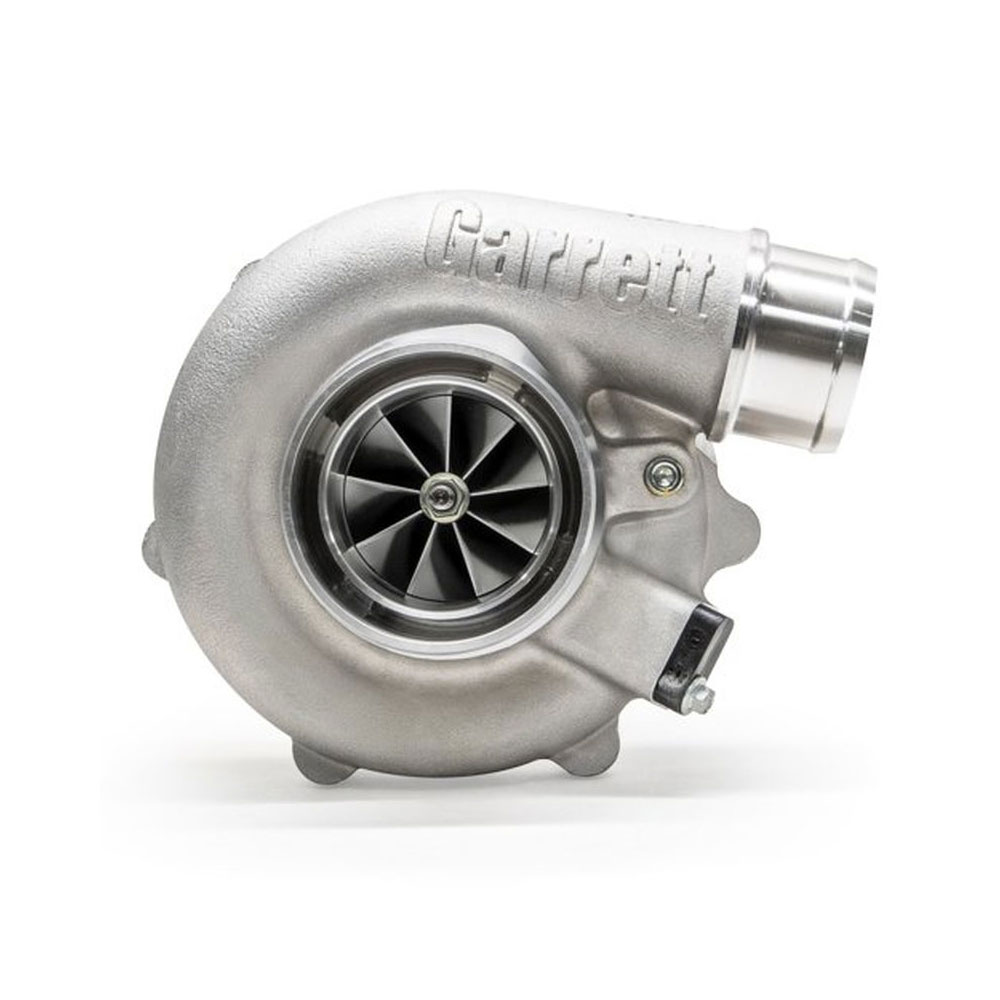

880697-5009S GARRETT G30-770 TURBOCHARGER (TW:55MM-60MM)(CW:58MM
- Garrett® G Series Compressor Aerodynamics for maximum HP.
- Fully machined Speed Sensor and pressure ports.
- New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
- Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
- Oil restrictor and water fittings included.
- Standar rotation.
- Compressor side: TRIM 65 A/R 0.72
- Compressor Air Inlet: Hose 4.00″ (101.60mm)
- Compressor Air Outlet: Hose 2.00″ (51.15mm)
- Turbine side: TRIM 84 A/R 0.83
- Turbine Inlet: V-Band 3.00″ (76.20mm)
- Turbine Outlet: V-Band 3.55″ (90.16mm)
- Bearing housing: Water and Oil cooled system.
